Meetup Lab: Service Portal Custom Variables

This lab walks through building custom Service Portal catalog variable widgets using a macro variable approach. Authors: Cody Esmay, Hunter Wolf. Cody is a local Minnesota ServiceNow expert and the brains behind this pattern.
This lab originally from the sndevs meetups repo and hosted on GitHub Pages.

What We Will Build

• A Service Portal Widget used as a macro variable on a catalog item
• The variable uses attribute fields to dynamically set up custom-looking checkboxes with font-awesome icons
• Because this doesn’t create new UI elements, it still works with client scripts and UI policies

Getting Started

1. Open Studio and import the scoped app: https://github.com/sndevs/snServiceCatalogWidget.git

App Branches

Lab 1: Set Up the Widget Server Script

1. Open the ButtonsWidg widget
2. Review the server.js pattern
3. Type it out yourself — learn by doing

Lab 2: Set Up the Client Script

1. Review the client.js pattern
2. Implement the client controller that handles checkbox interactions

Lab 3: Set Up the HTML Template

1. Review the template.html pattern
2. Build the template that renders custom checkboxes using font-awesome icons

Lab 4: Variable Attributes

By default the variable attribute field isn’t listed on the form. The easiest way to get to it for the lab is to add it to a list.

Once added, you’ll notice the first set of checkboxes have:

button_widget=what_do_widget;icon=fa-icon

These details are parsed by the widget:

• Grouping is dictated by button_widget=value
• Icon is set by icon=fa-icon

Update the first macro to use the ButtonsWidg widget and recheck the form — the first set of icons should be working.

Lab 5: Add a Second Set of Variables

To get a feel for how dynamic this is, add attributes to the second set of checkboxes:

button_widget=another_widget;icon=fa-icon

Where:

• another_widget is the name of a newly created macro (like what_do_widget)
• fa-icon uses font-awesome 4.7.0 icon names

Reference: Font Awesome 4.7.0 Icons

Final Check

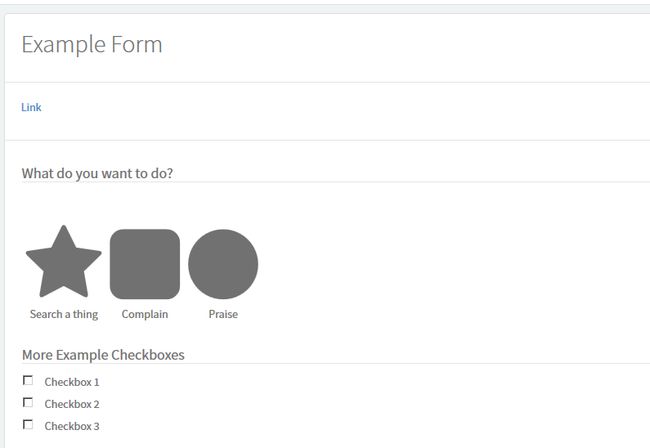

Request the item from the service catalog — the checkboxes retain their values so they work like regular checkboxes, just with custom styling.
